GMULM0x-EX
GMULM0x-EX
Ultrasonic level probe
Complies with standard ATEX II 3D EEx IP65 T85°C
Emission angle: 10° typical
Ultrasound frequency: 42kHz
Ambient operating temperature: –40°C – +65°C
Opto-isolated output:
- with 2 solid-state relays
- RS485 serial
- analog 4–20mA
Power: 24Vdc
Protection: IP65
Die-cast aluminium container painted RAL 3000 [DIN A]
Attachment: 3/4” joint

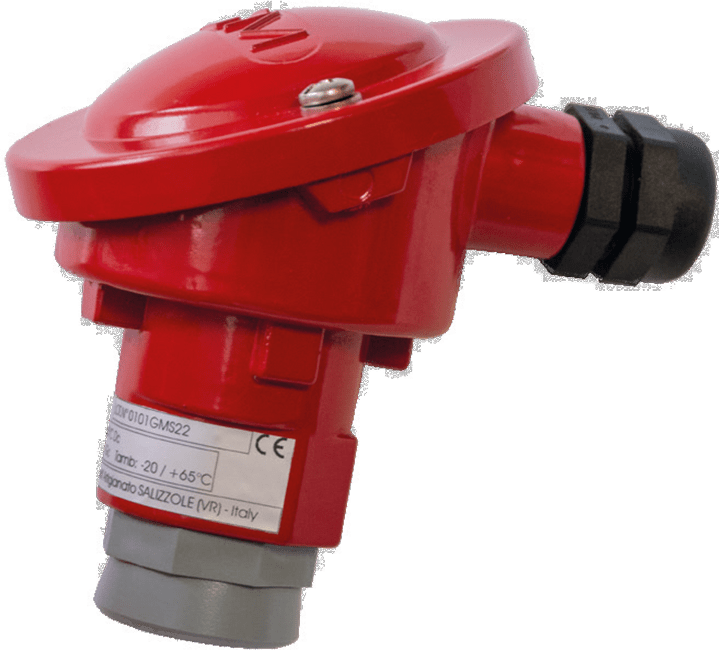

GMULM01-EX
Maximum measurement range: 10 m for measurement of fluids and 5m for measurement of solids
Minimum measurement distance: 500 mm – EXCLUDES emission cone and flange
GMULM02-EX
Maximum measurement range: 5 m for measurement of fluids and 2.5m for measurement of solids
Minimum measurement distance: 300 mm – EXCLUDES emission cone and flange

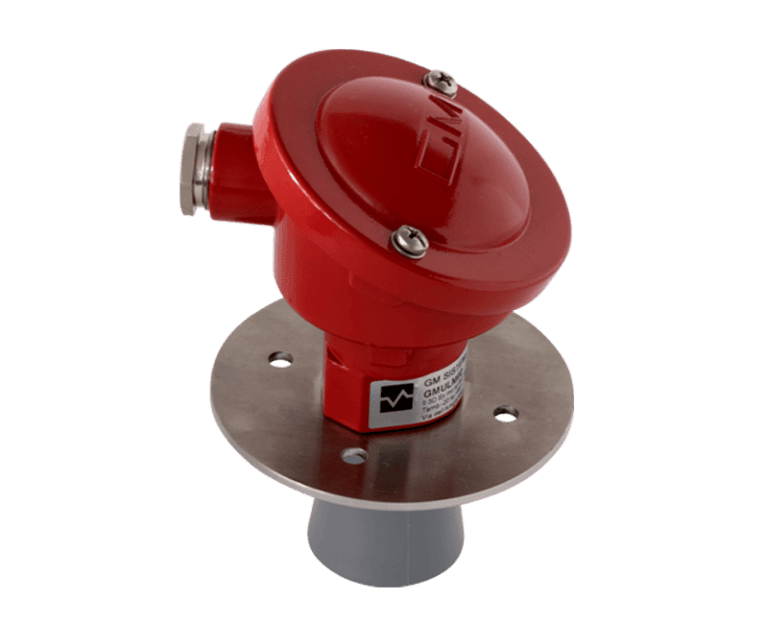

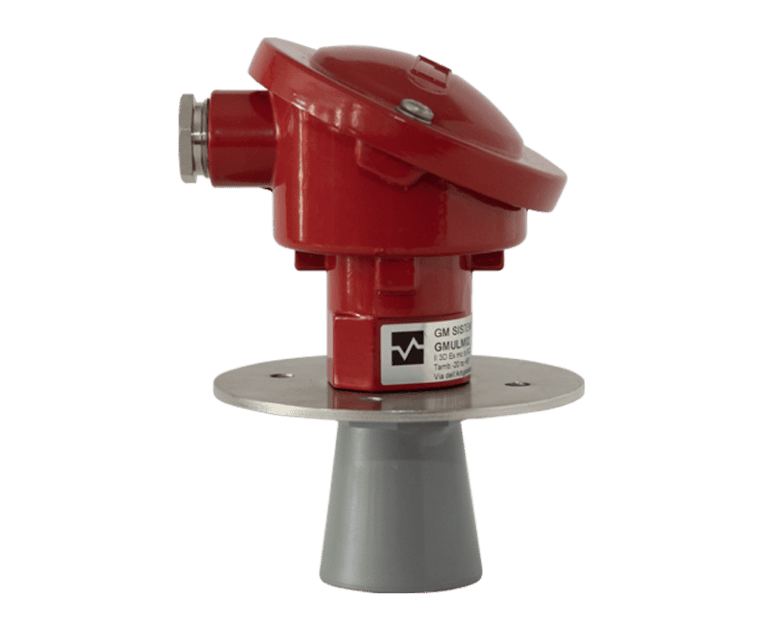

GMULM03-EX
Maximum measurement range: 3.5 m for measurement of fluids and 2m for measurement of solids
Minimum measurement distance: 200 mm – INCLUDES emission cone and flange
Accessories
GMULM0x-EX
trasduttore di temperatura
Conforme alla Direttiva ATEX 2014/34/UE – Categoria 3D
Termoresistenza RTD al platino tipo PT100
Alimentazione: 24Vdc
Grado di protezione: IP65
Contenitore in alluminio pressofuso verniciato RAL3000
dimensioni DIN A
Stilo di misura in acciaio AISI304 – L = 150mm – Ø = 8mm
Fissaggio: tronchetto maschio da ½”
GMSTN415D-EX
Range di misura: da -40° a +150°C
Uscita 4/20mA: 4mA@ -40°C, 20mA@ +150°C
GMSTN425D-EX
Range di misura: da -40° a +150°C
Uscita 4/20mA: 4mA@ -40°C, 20mA@ +250°C
CARATTERISTICHE TECNICHE
GMSTN415D-EX/GMSTN425D-EX
| Alimentazione | 24 ± 10% Vdc |
| Assorbimento | 65mA |
| Tolleranza | +/- 1°C |
| Temperatura circuito e contenitore | -5 / +80°C |
| Temperatura GMSTN415D-EX | 4mA@ -40 / 20mA@ +150°C stilo di misura |
| Temperatura GMSTN425D-EX | 4mA@ -40 / 20mA@ +250°C stilo di misura |
| Stilo misura | Acciaio spessore 1mm Ø 8 x 150mm |
| Contenitore | Alluminio pressofuso |
| Protezione | IP 65 |
| Protezione | ATEX zona 22 D |
| Fissaggio Tronchetto maschio filetto 1/2” (mezzo pollice) | Tronchetto maschio filetto 1/2” (mezzo pollice) |
