FIRE PREVENTION
GMTEST4-EX
GMTEST4-EX
FOURTH-GENERATION TEST LAMP for GMSC243TH-EX spark detectors
Complies with ATEX Directive 2014/34/EU
Category 3D/3G
Die-cast aluminium enclosure painted RAL 3000

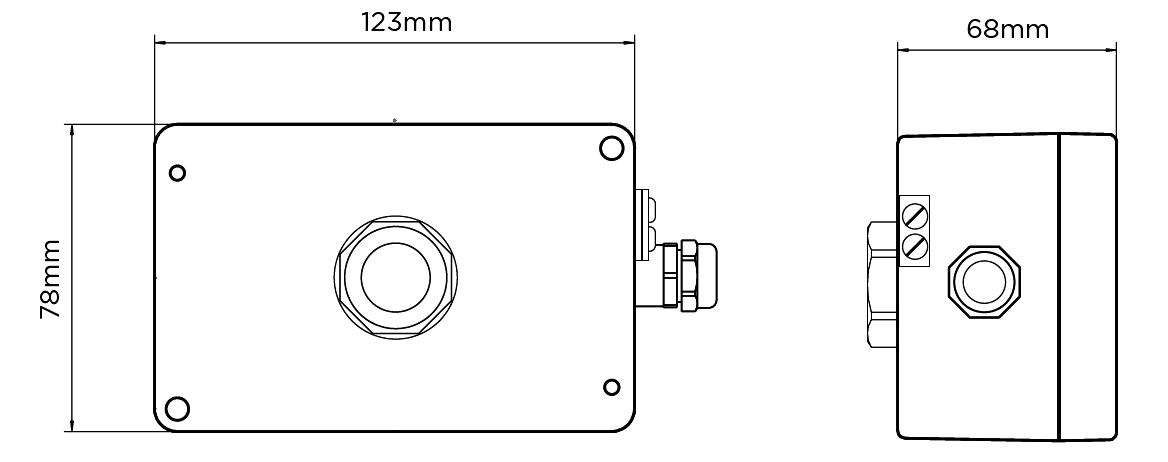

dimensions: L x H x D = 123 mm x 68 mm x 78mm
Operating temperature: –30°C – +65°C
Power: 24Vdc – absorption: 200–250mA
Protection: IP65
GMTEST4-EX-FM
FOURTH-GENERATION BULB TEST for GMSC243TH-EX-FM spark detectors
FM APPROVED certified
Complies with ATEX Directive 2014/34/EU
Category 3D/3G
Die-cast aluminium enclosure painted RAL 3000
dimensions: L x H x D = 123 mm x 68 mm x 78mm
Operating temperature: –30°C – +65°C
Power: 24Vdc – absorption: 200–250mA
Protection: IP65
Accessories
GMTEST4-EX
IV GENERATION SPARK DETECTOR
in compliance with the Directive ATEX 2014/34/UE
3GD Category
Die cast aluminium case RAL3000
Operating temperature: -30 / +65 °C (-22°F to +149°F)
DC Voltage: 24Vdc
Rated Current: 20 mA [riposo] – 30mA [in allarme]
Protection: IP65

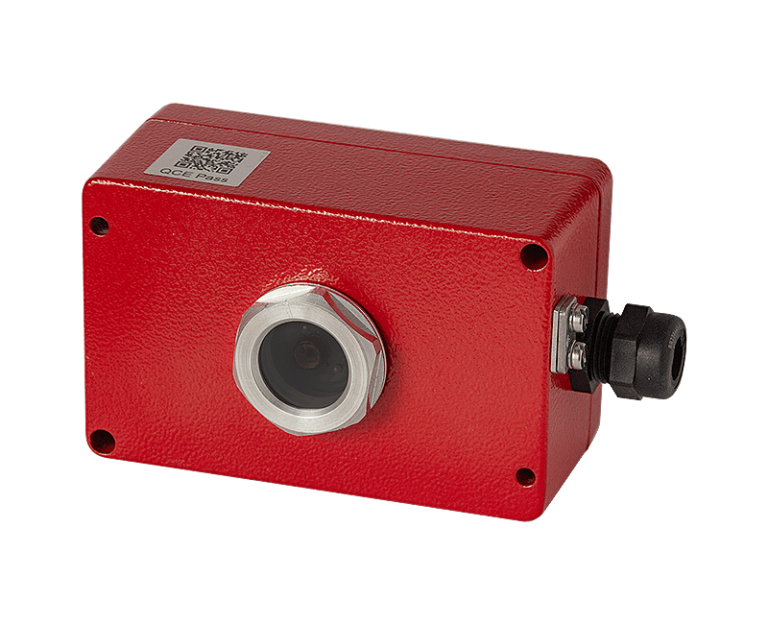

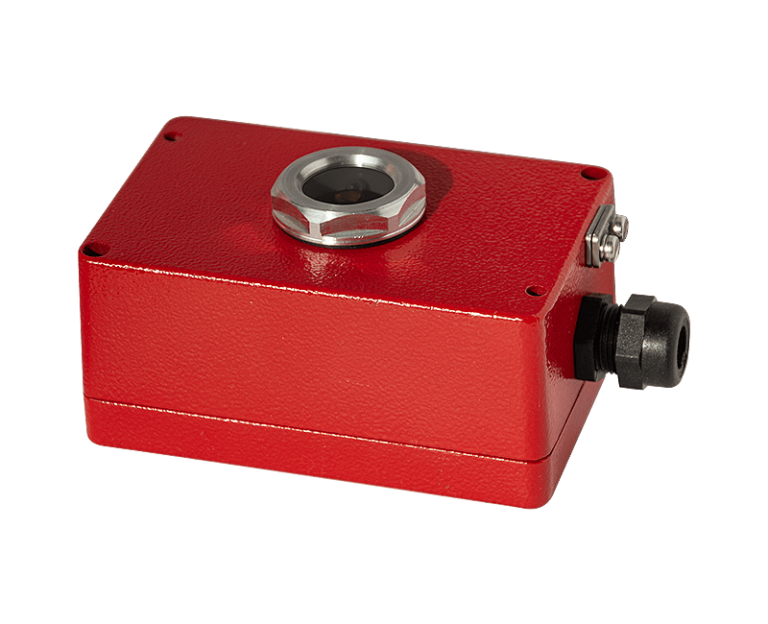

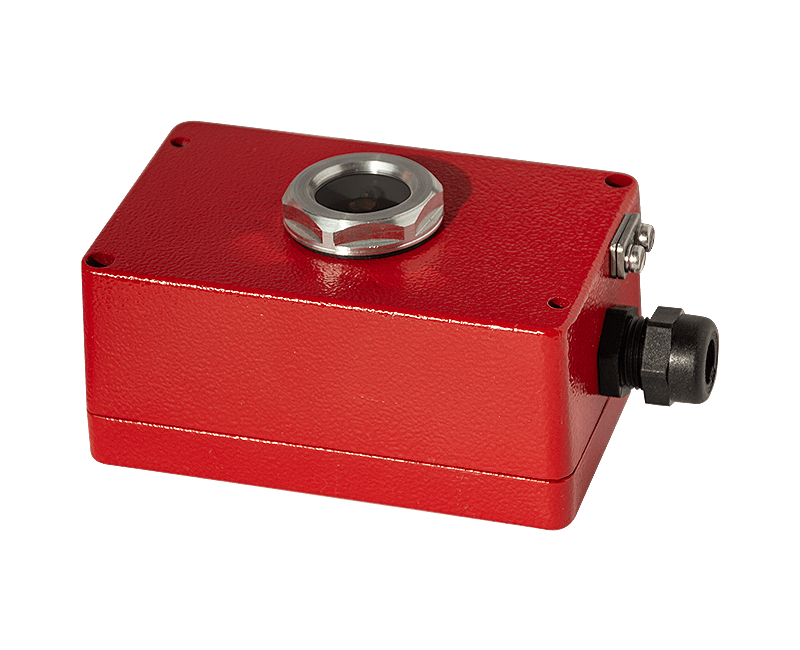

GMSC243TH-EX-FM
IV GENERATION SPARK DETECTOR
FM APPROVED certified
in compliance with the Directive ATEX 2014/34/UE
3GD Category
Die cast aluminium case RAL3000
Operating temperature: -30 / +65 °C (-22°F to +149°F)
DC Voltage: 24Vdc
Rated Current: 20 mA [riposo] – 30mA [in allarme]
Protection: IP65
