INDUSTRIAL MEASURE
GMSTNxxxD-EX
Trasduttori di Temperatura
GMSTNxxxD-EX
Temperature Transducer
Complies with ATEX Directive 2014/34/EU – Category 3D
Power supply: 24Vdc
Protection: IP65

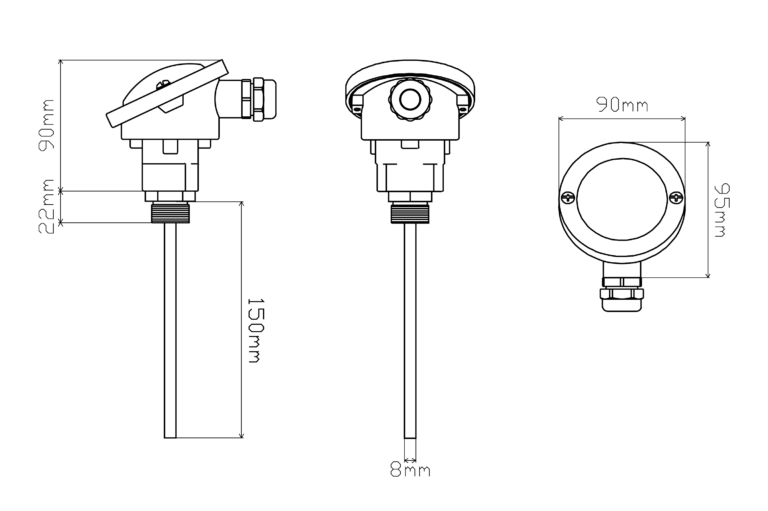

Die-cast aluminium enclosure painted RAL 3000 dimensions DIN A
Measurement stylus in AISI 316L Stainless Steel – L = 150 mm – Ø = 8 mm
Attachment: ½” joint

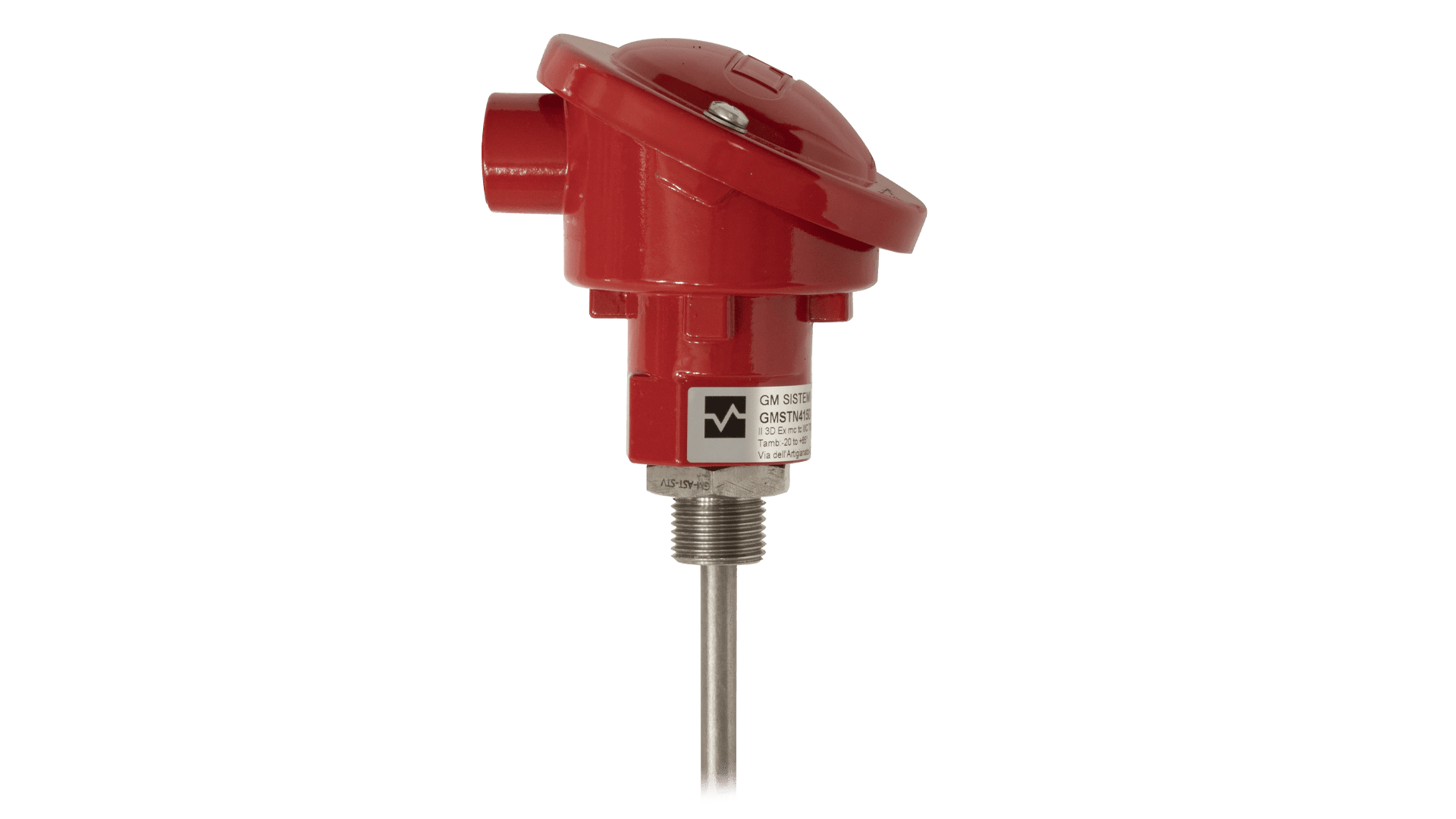

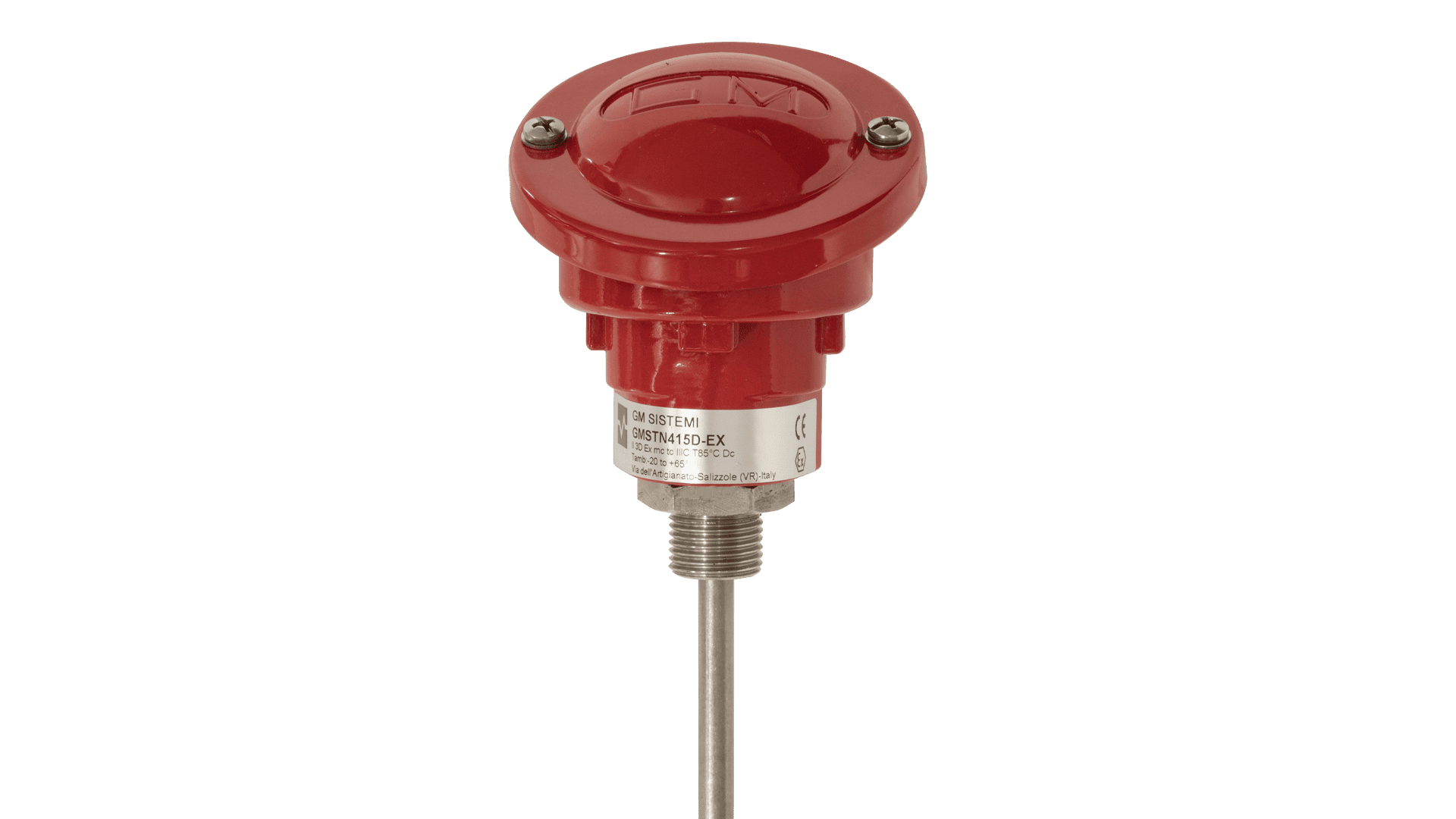

GMSTN415D-EX
Measurement range: –40°C to +150°C
Output 4–20mA: 4mA@ -40°C, 20mA@ +150°C

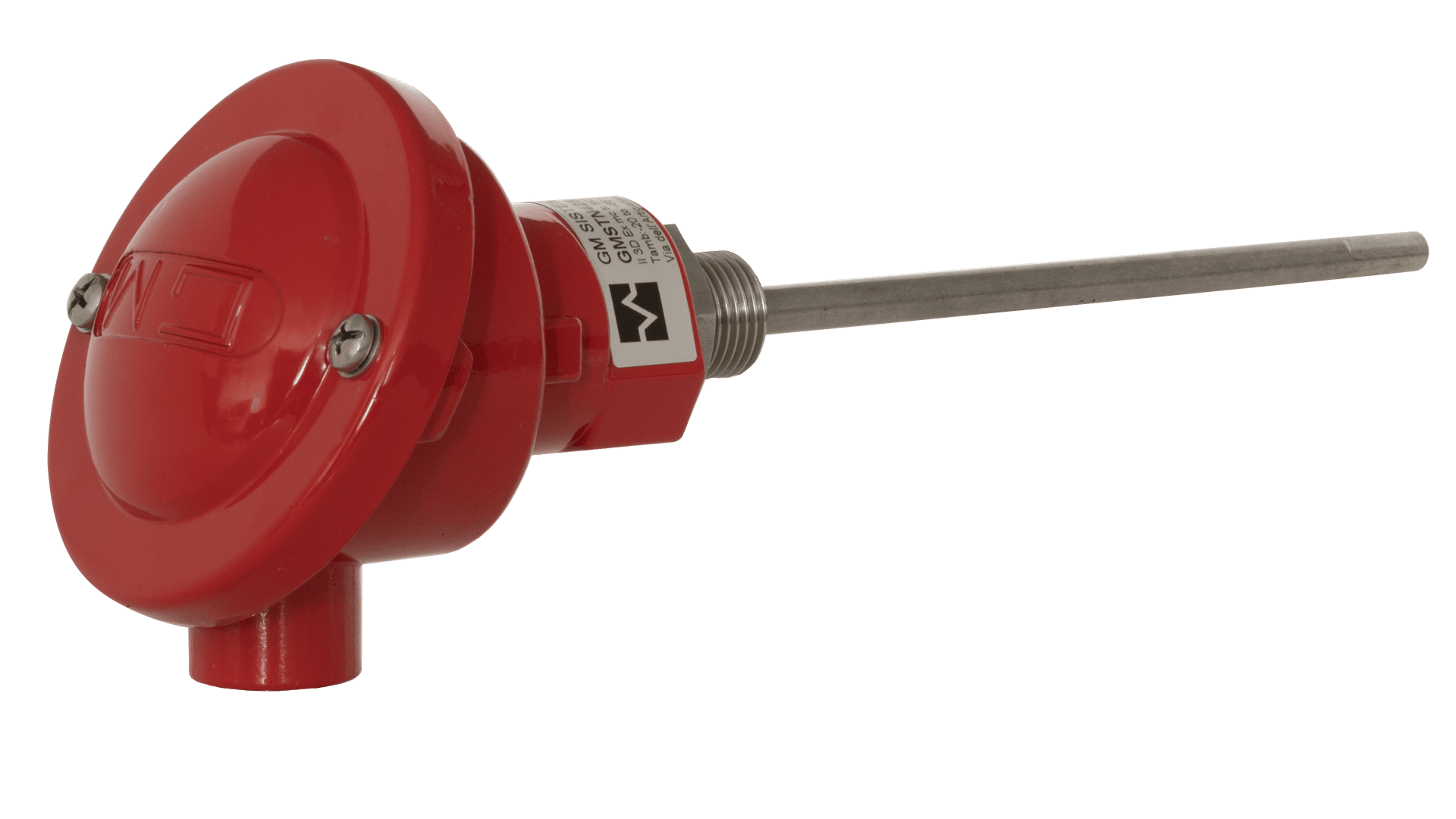

GMSTN425D-EX
Measurement range: –40°C to +250°C
Output 4–20mA: 4mA@ -40°C, 20mA@ +250°C
