INDUSTRIAL MEASURE
GMPID002-TRB
Microprocessor Module for Triboelectric Probes
GMPID002-TRB
MICROPROCESSOR MODULE
for VIEWING the detected dust concentration and custom management triboelectric probes
Menagement of one probe [1] with values shown on the display

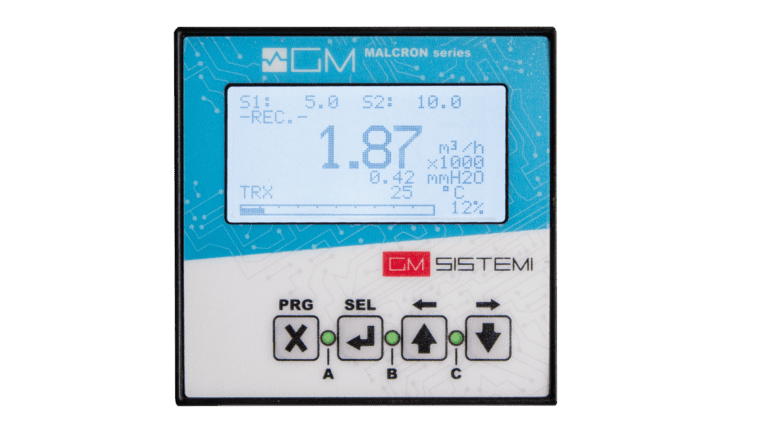

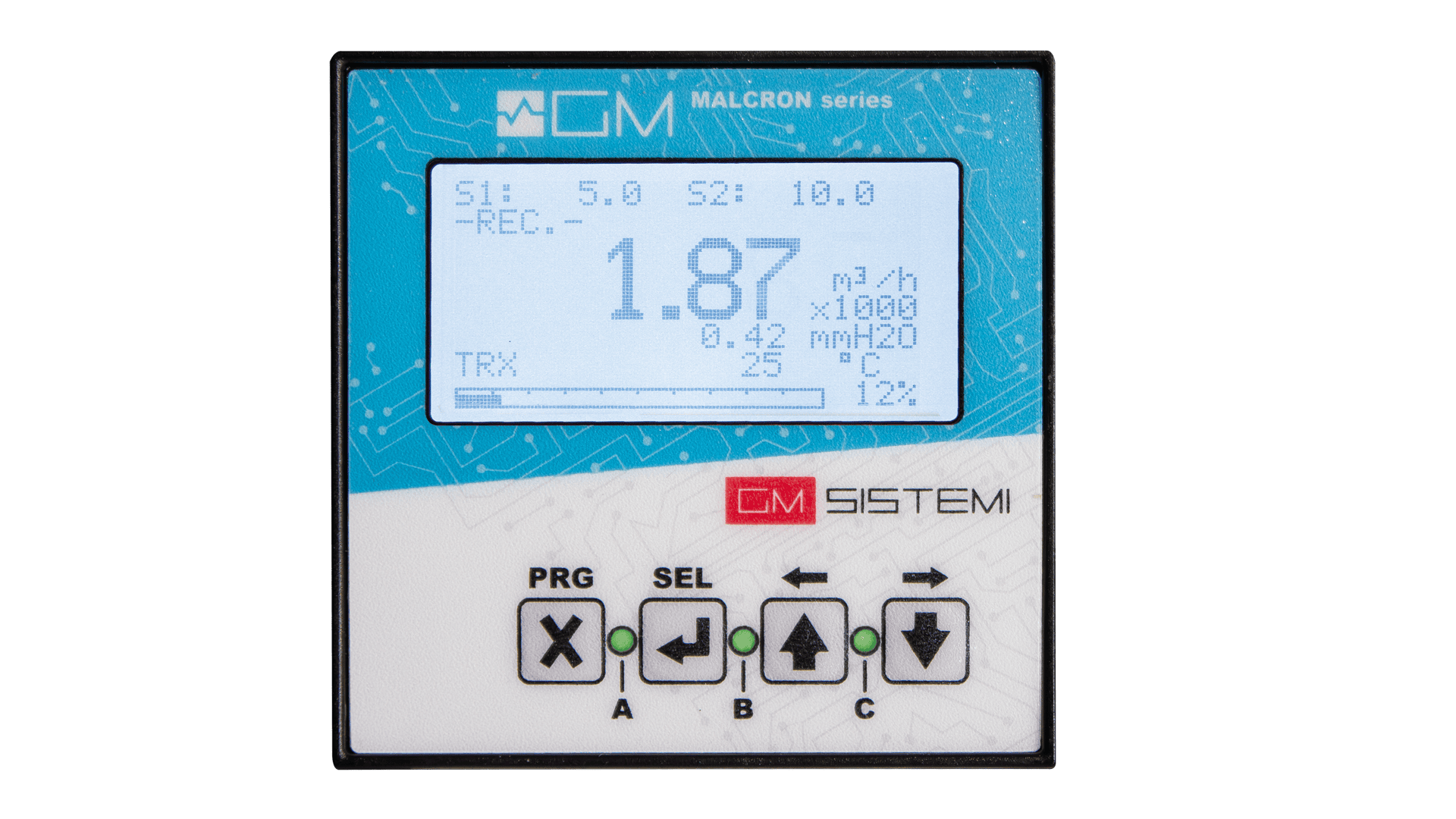

Display: backlit, 128 x 64 pixels

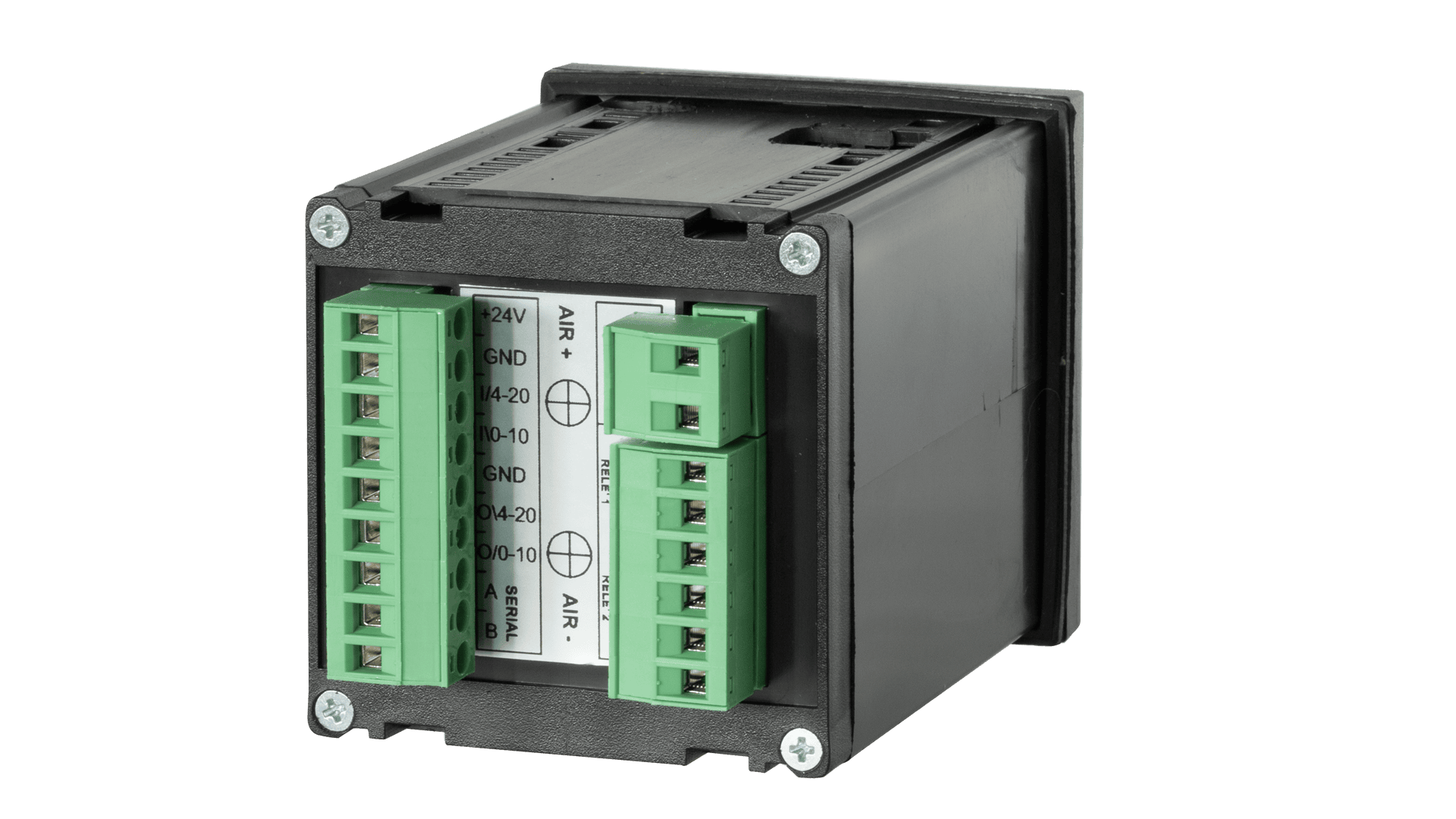

Inputs:
- analog current 4-20mA
(only for probes GMTRB005 – …and GMTRB006 – ….) - RS485
(for probes GMTRB003 – … and GMTRB005 – …and GMTRB006 – ….)
Outputs:
- analog 4/20mA
- analog 0 – 10V
- serial RS485
- digital on two relays, fully customized using internal device software
Output 24Vdc 100mA to power external devices
Power 1: from 85 to 264 VAC [from 47 to 440Hz] or from 127 to 370Vdc.
Power 2: 24Vdc ± 10%
Both power supplies are included standard.
Working temperature: -20°C/+60°C
Front protection: IP54
GMPID002-TRB-003
Microprocessor module for connecting one (1) triboelectric probe series: GMTRB003D-EX-xx-xx
GMPID002-TRB-005
Microprocessor module for connecting one (1) triboelectric probe series: GMTRB005D-EX-xx-xx
GMPID002-TRB6
Microprocessor module for connecting one (1) triboelectric probe series: GMTRB006D-EX-xx-xx

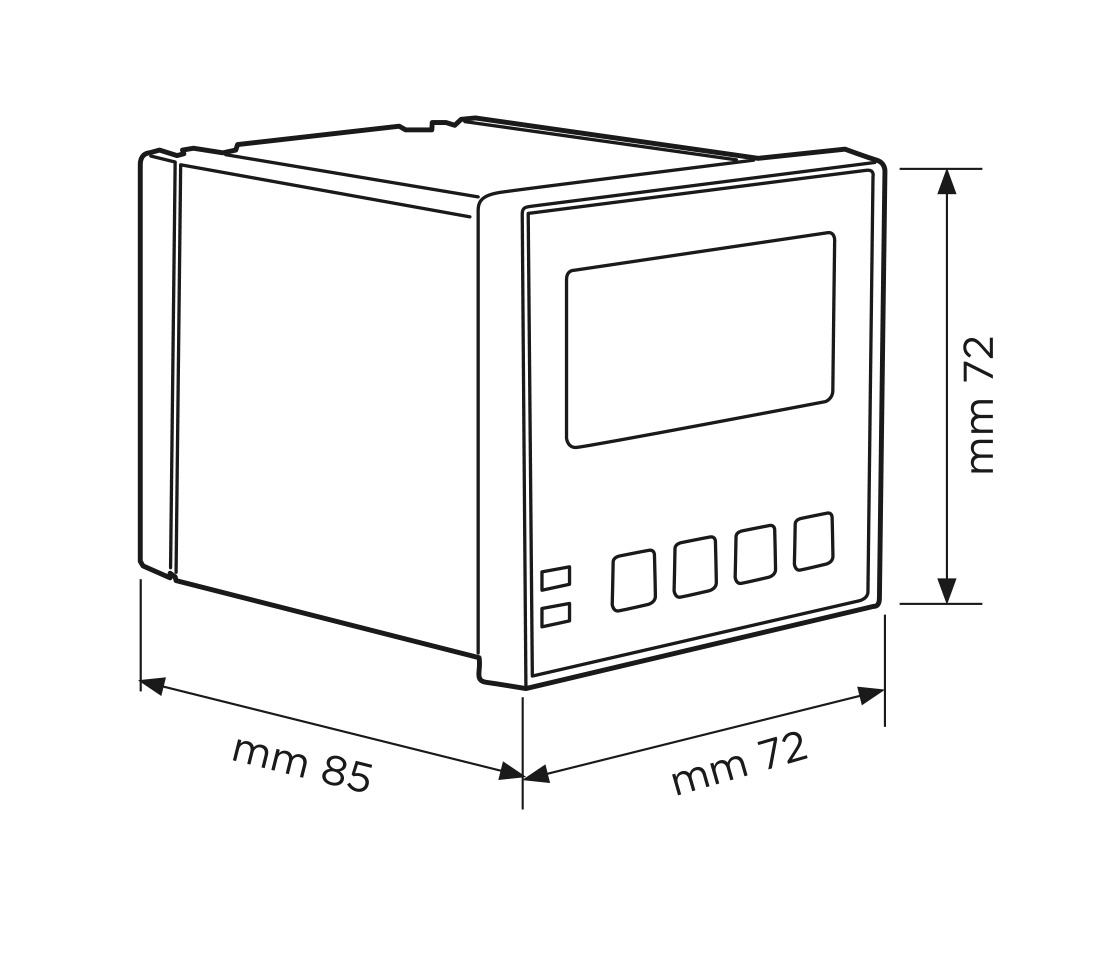

DIMENSIONS:
Accessori
There are no optionals for this product.
