FIRE PREVENTION
GMPID001-STV

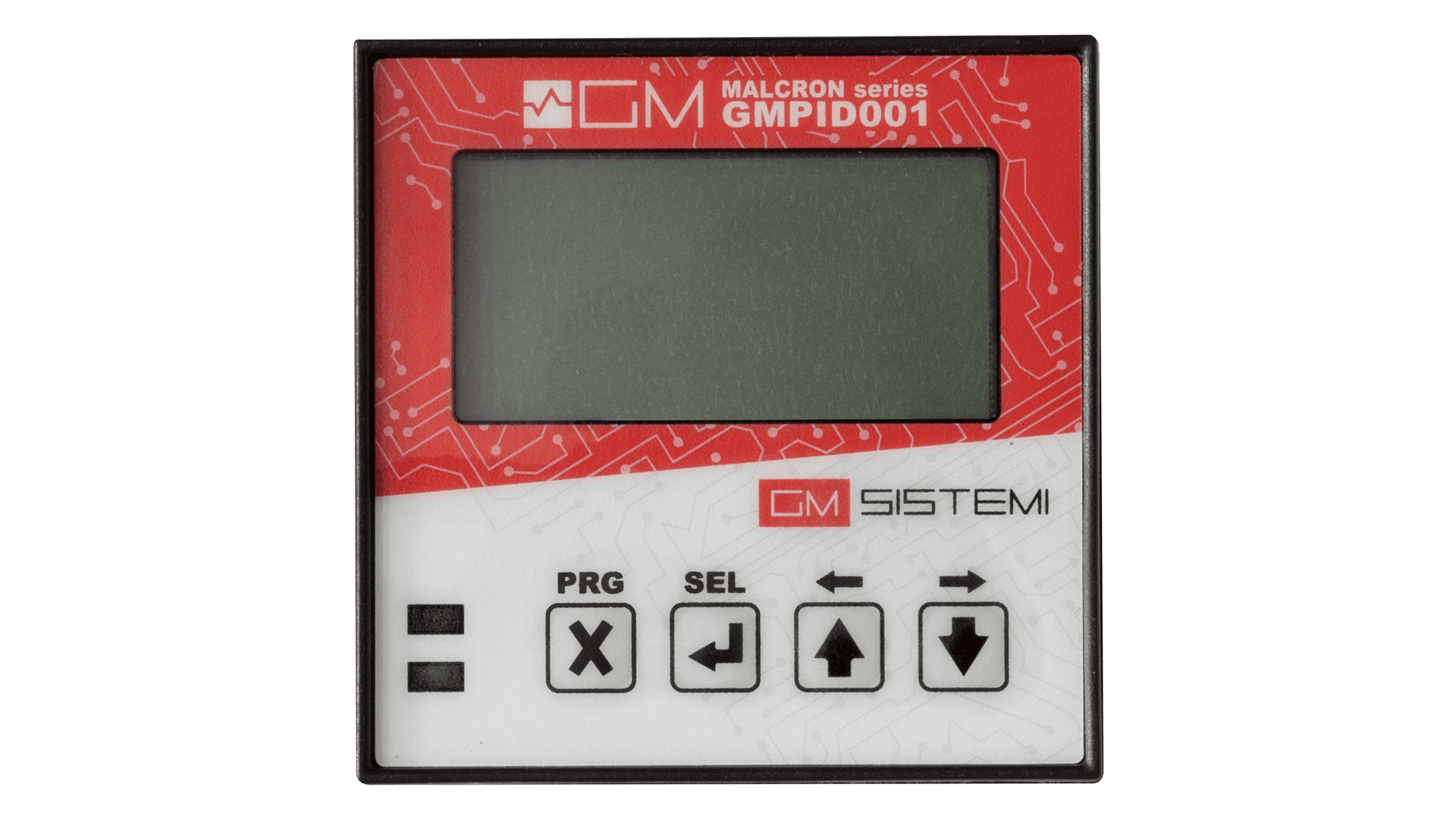

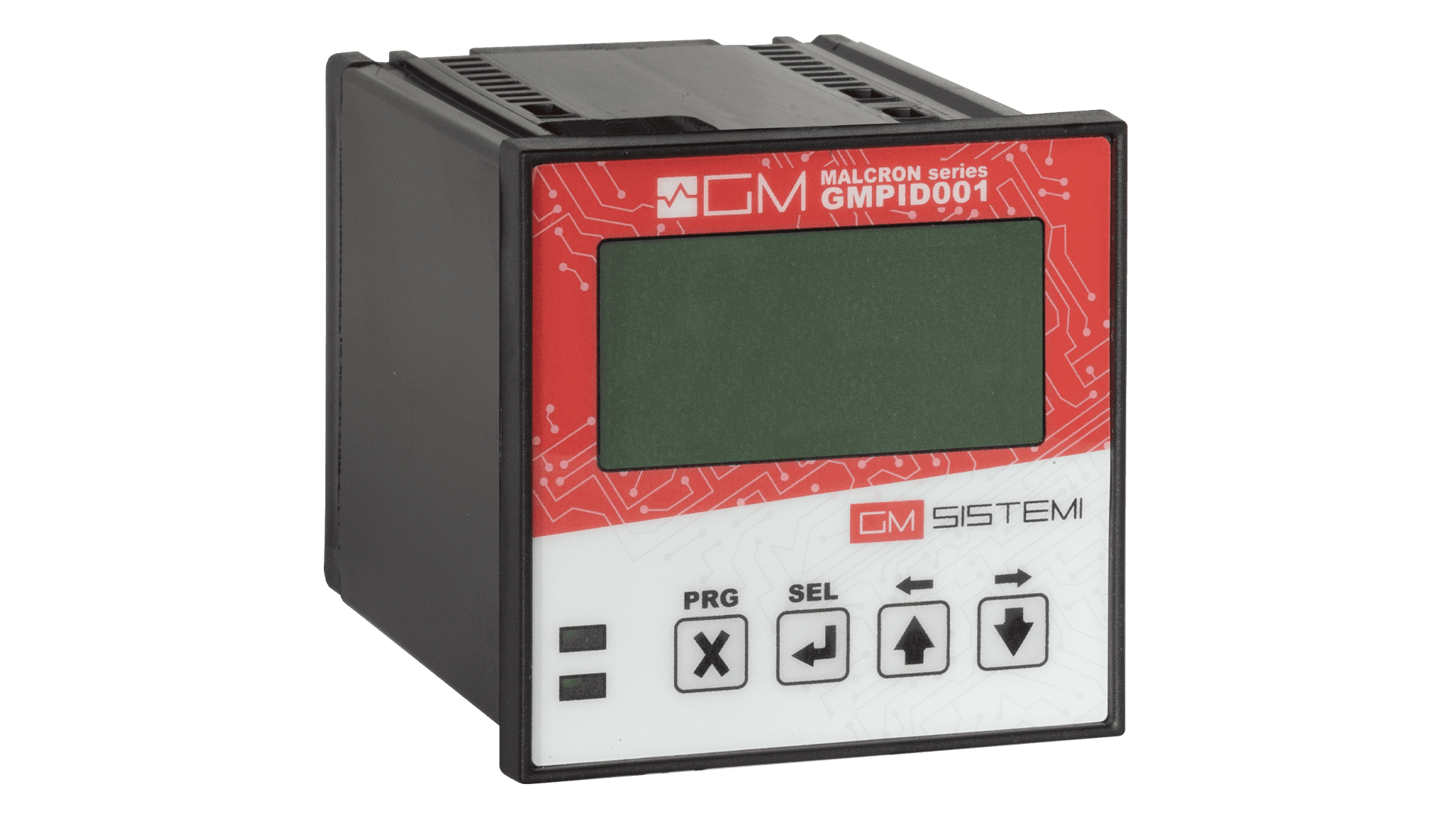

Thermal Probes Control Module
GMPID001-STV
MICROPROCESSOR MODULE
for VIEWING the temperature and for personalized management of the temperature probe.
Possibility of managing up to two probes [2] with values shown on the display.
Display: backlit, 128 x 64 pixels

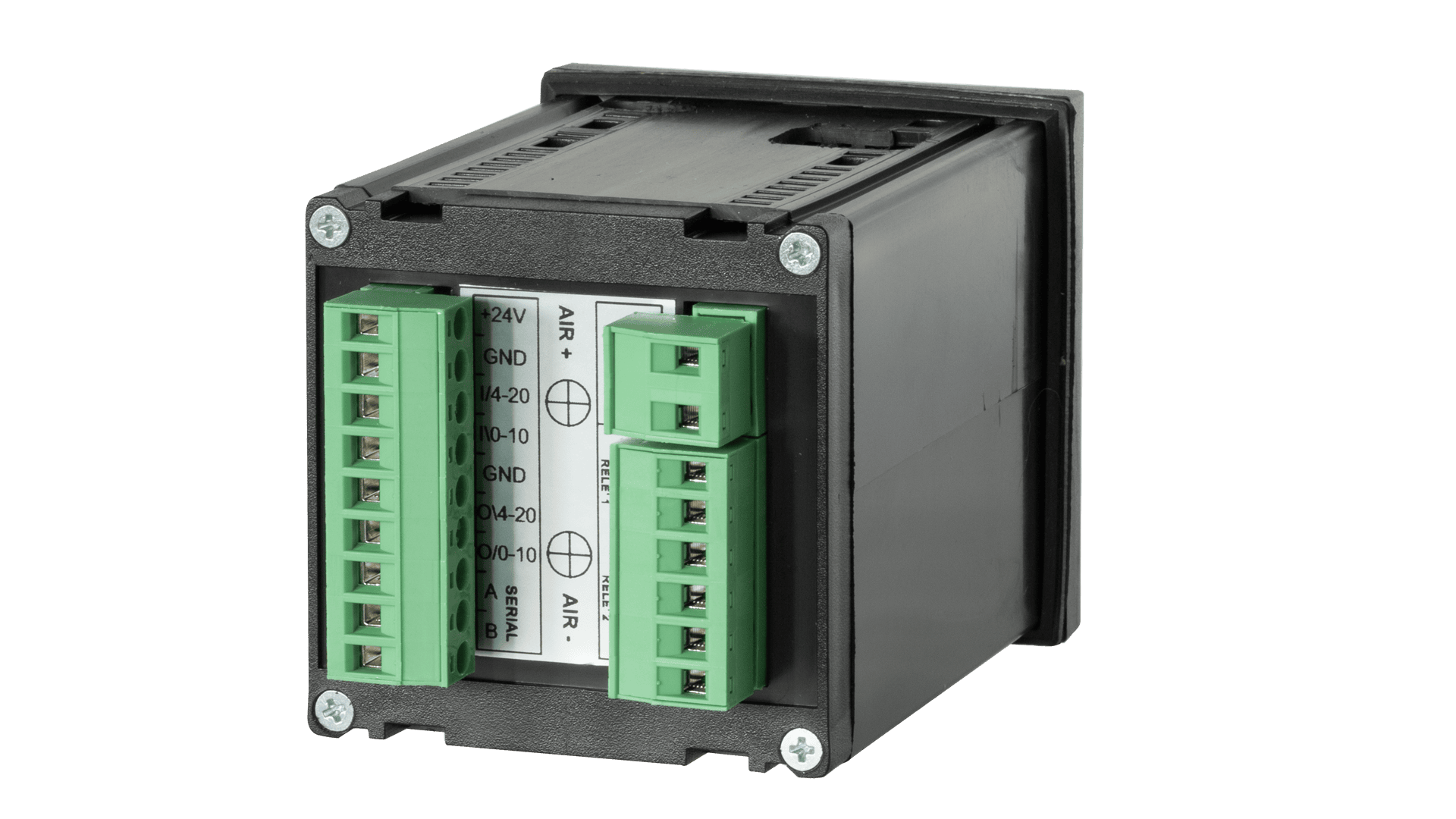

Inputs:
- analog current 4–20mA
- analog tension 0/10V
- RS485
Outputs:
- analog 4/20mA
- analog 0 – 10V
- serial RS485
- digital on two relays, fully customized using the device software
Uscita 24Vdc 100mA to supply external devices
Power supply:
- standard from 85 to 264Vac [from 47 to 440 Hz] and from 127 to 370Vdc
- or specify 24Vdc when ordering
Operating temperature: –20°C – +60°C
Front protection: IP54
GMPID001-STV-1–To connect one thermovelocimetric probe (1): GMSTVxxxD-EX
GMPID001-STV-2–To connect two thermovelocimetric probes (2): GMSTVxxxD-EX

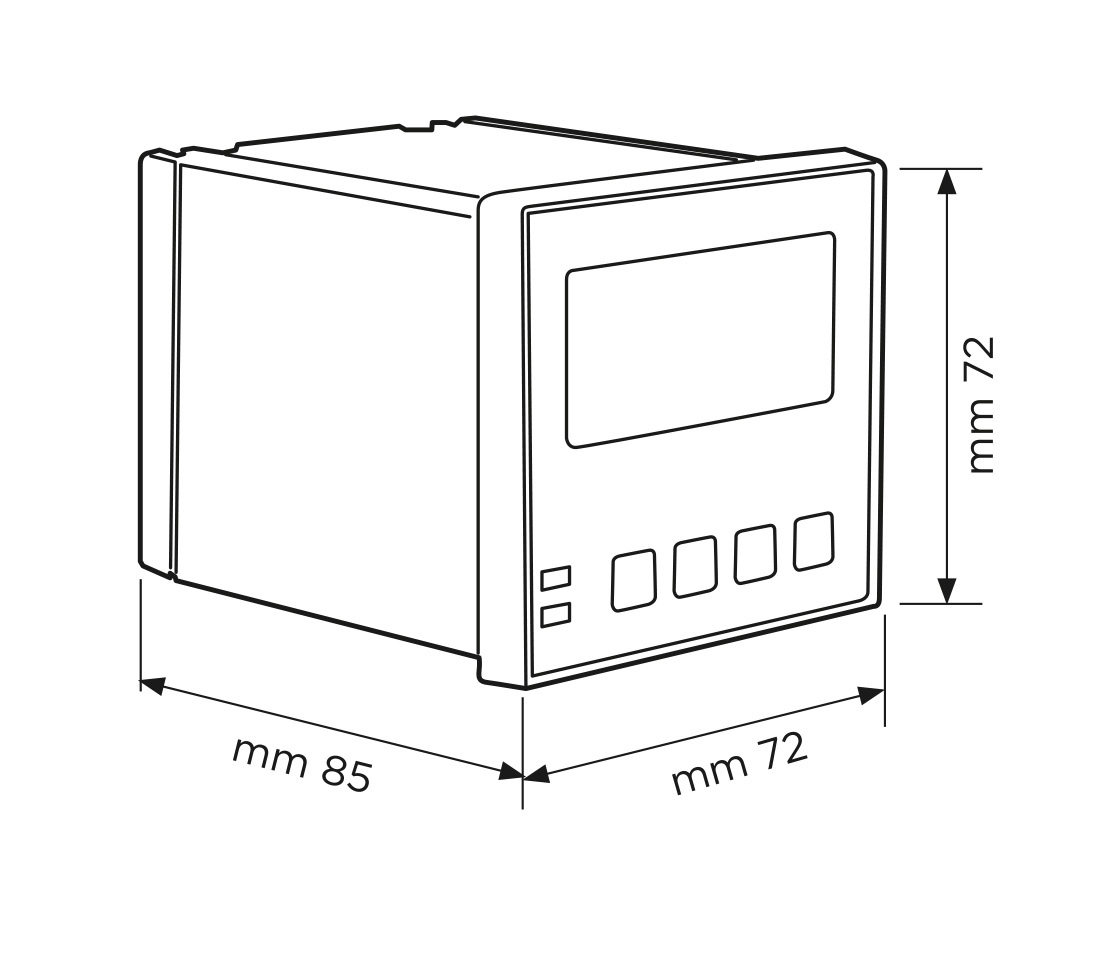

DIMENSIONS:
