INDUSTRIAL MEASURE
GMPID001-Dxx
GMPID001-Dxx

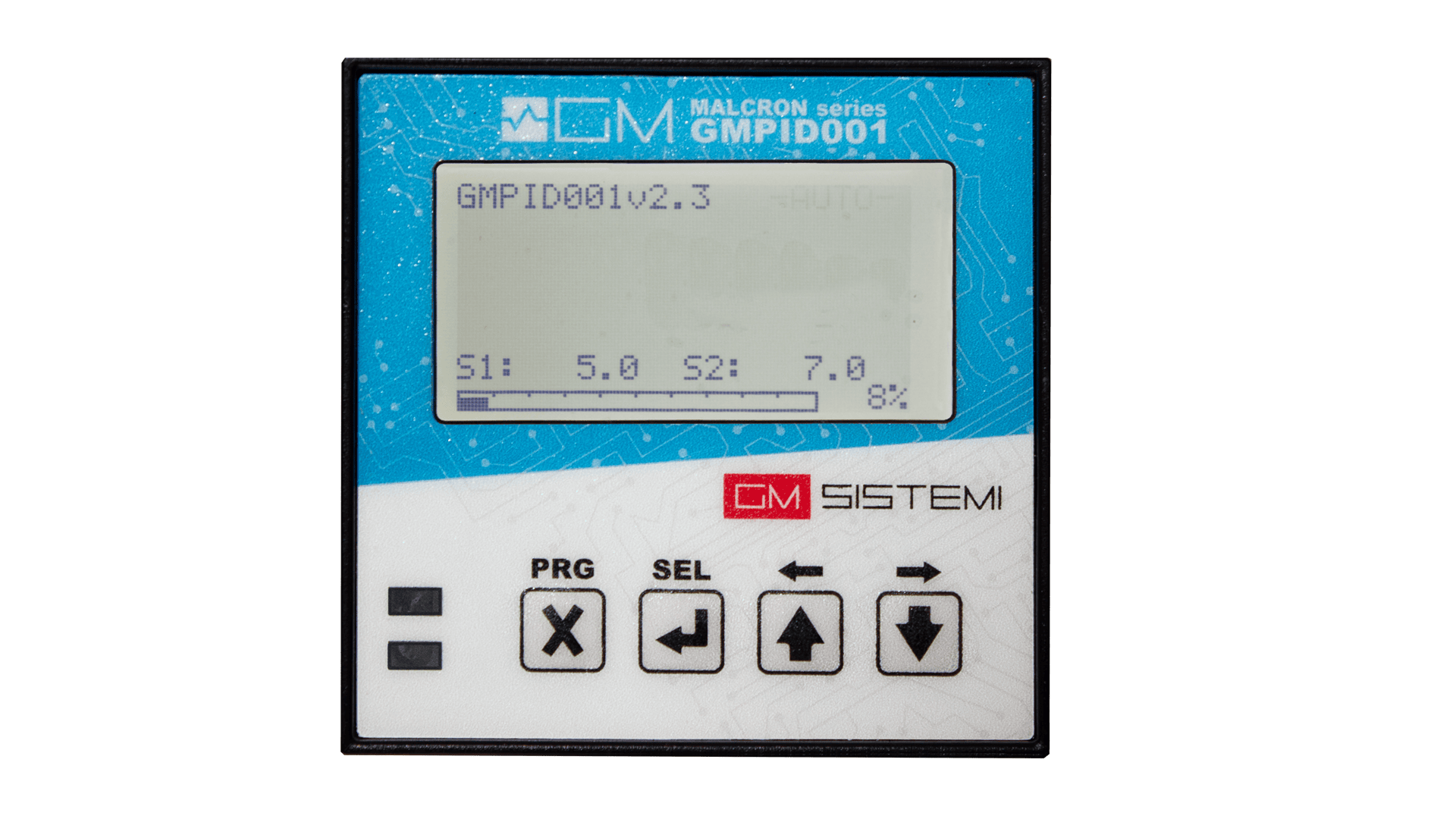

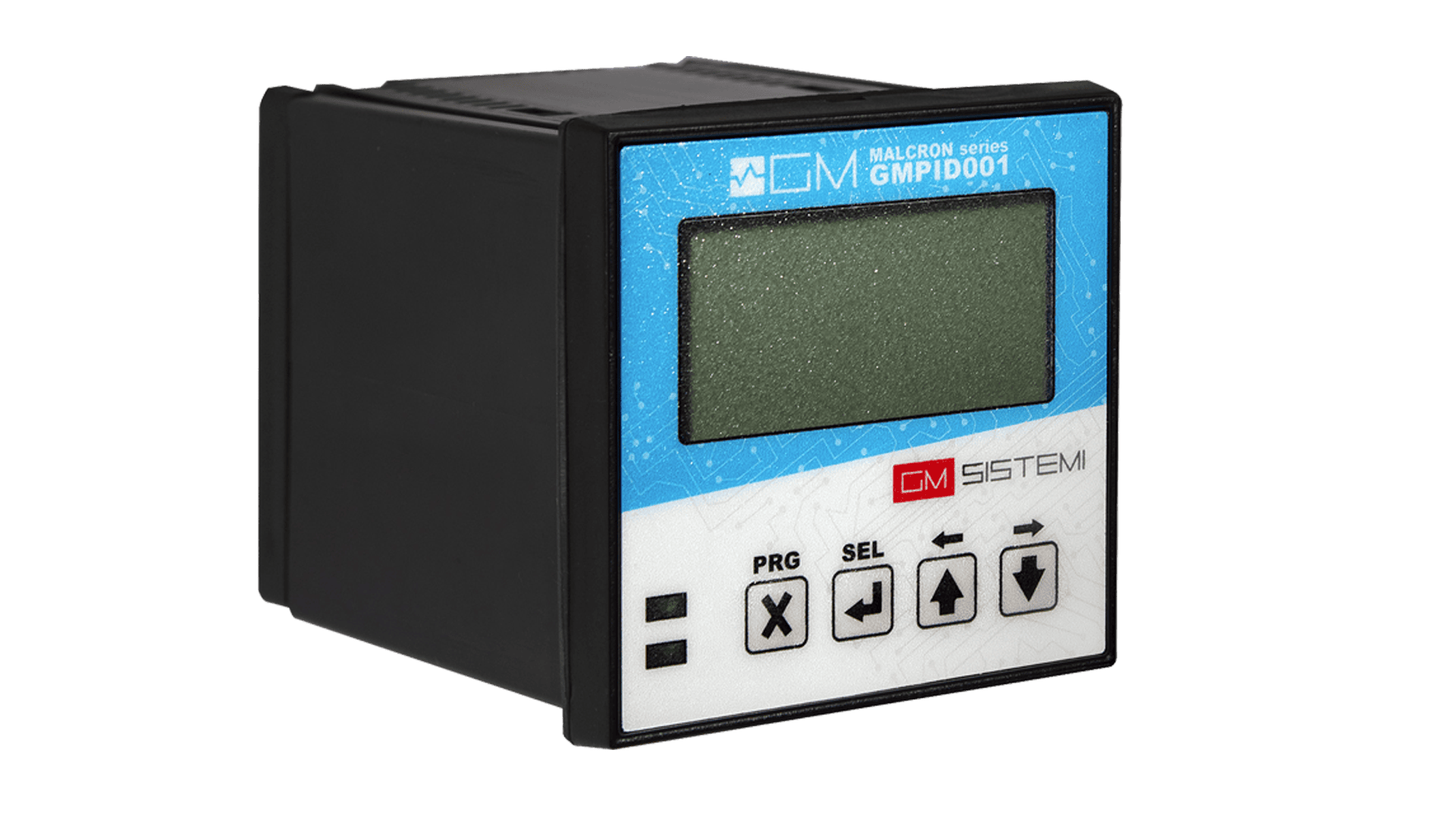

MICROPROCESSOR MODULE
for MEASURING the differential pressure with display to monitor mechanical filter blockages
PID regulation function
Display: backlit 128 x 64 pixels

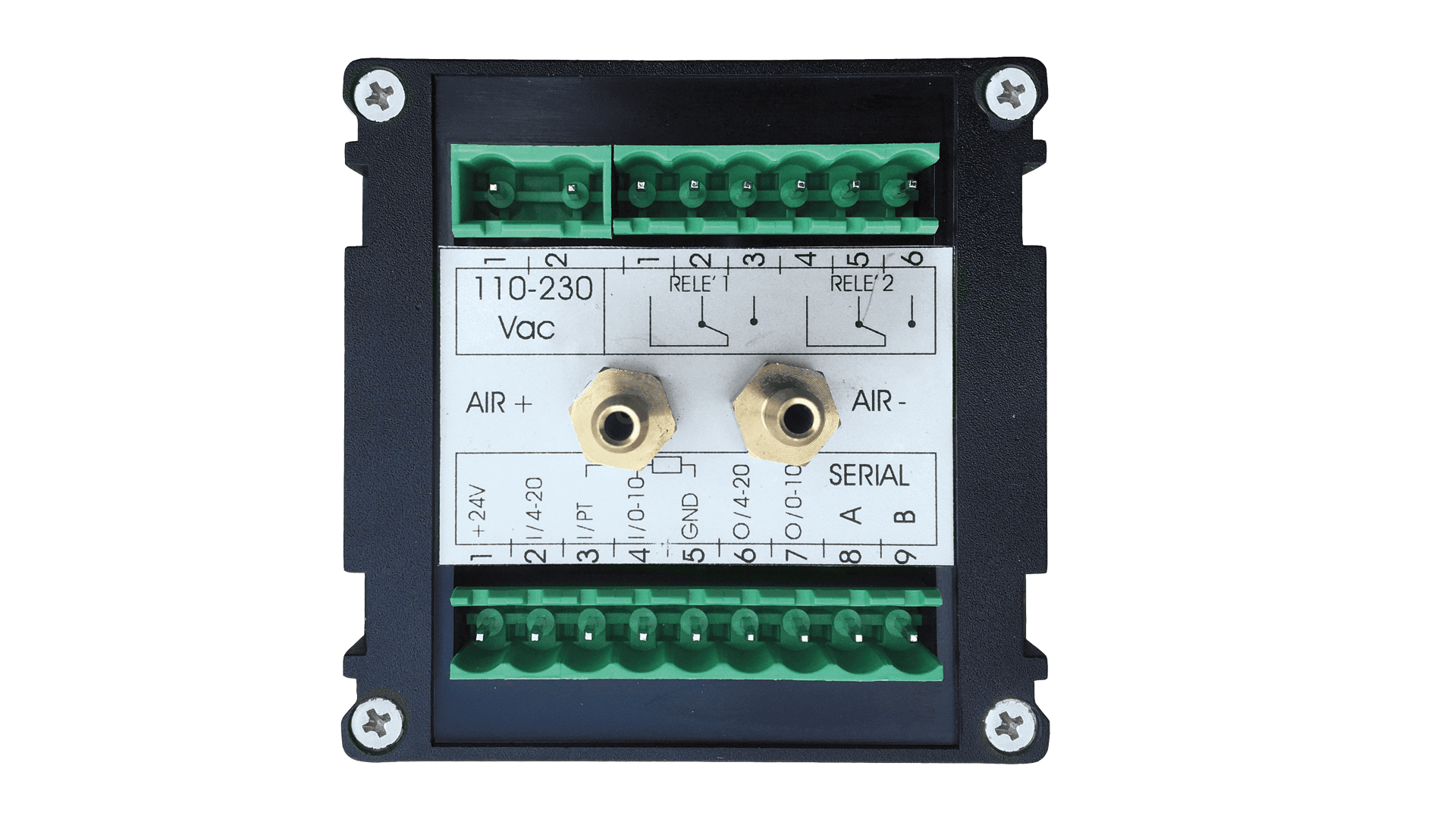

Inputs:
- pressure
Outputs:
- analog 4/20mA
- analog 0 – 10V
- serial RS485
- digital on two relays, fully customized using internal device software
Output 24Vdc 100mA to supply external devices
- standard from 85 to 264Vac [from 47 to 440 Hz] and from 127 to 370Vdc
- or specify 24Vdc when ordering
Operating temperature: -20°C/+60°C
Front protection: IP54
Measurement range:
GMPID001-D 0/350mm H2O
GMPID001-D6K 0/600mm H2O
GMPID001-D10K 0/1000mm H2O
GMPID001-D20K 0/2000mm H2O
GMPID001-D50K 0/5000mm H2O
GMPID001-D2K 0/200mm H2O
GMPID001-D2K2 -200/+200mm H2O
GMPID001-DH250K2 -25/+25mm H2O
GMPID001-DH100K 0/10mm H2O
GMPID001-DH100K2 -10/+10mm H2O
Specify the desired power supply when ordering
DIMENSIONS:
