FIRE PREVENTION

GMFD005D

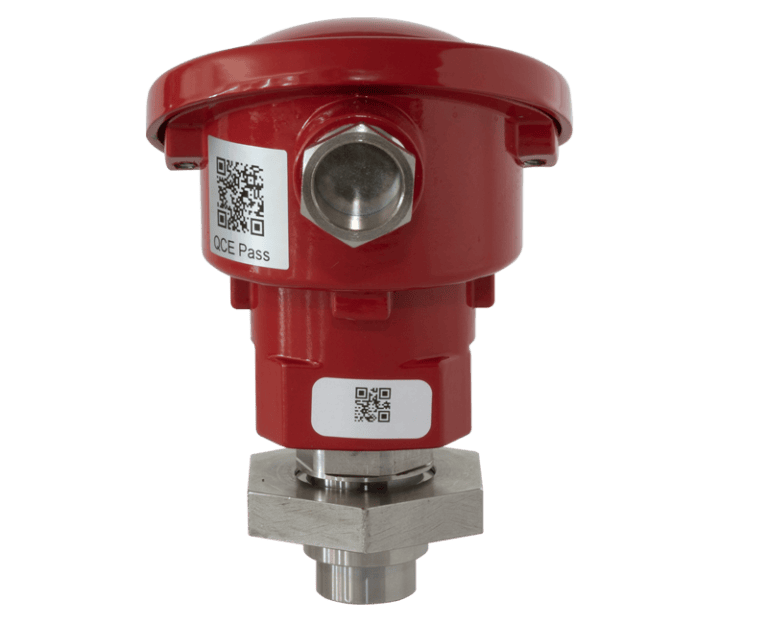

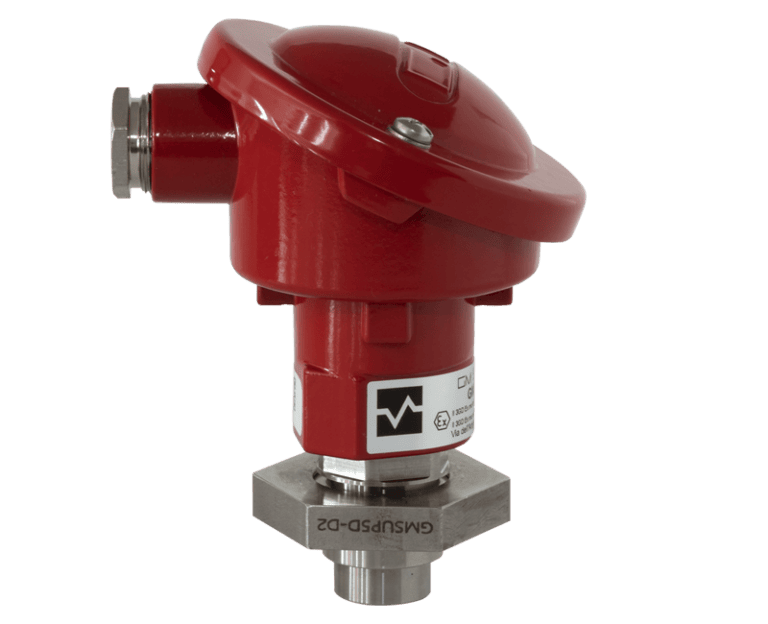

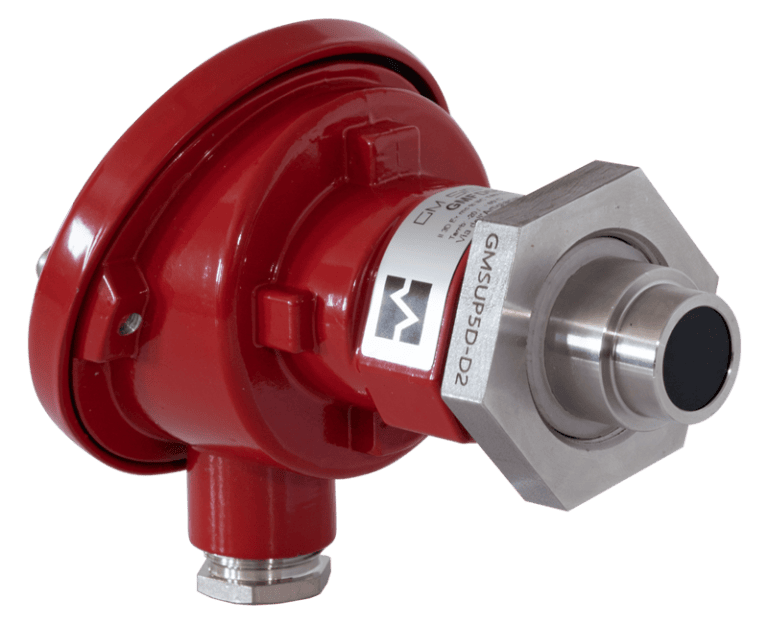

V Generation Flame Detector

GMFD005D

V GENERATION FLAME DETECTOR

In accordance with ATEX guideline 2014/34/EU
Category 3D/3G

Die-cast aluminium enclosure painted RAL3000

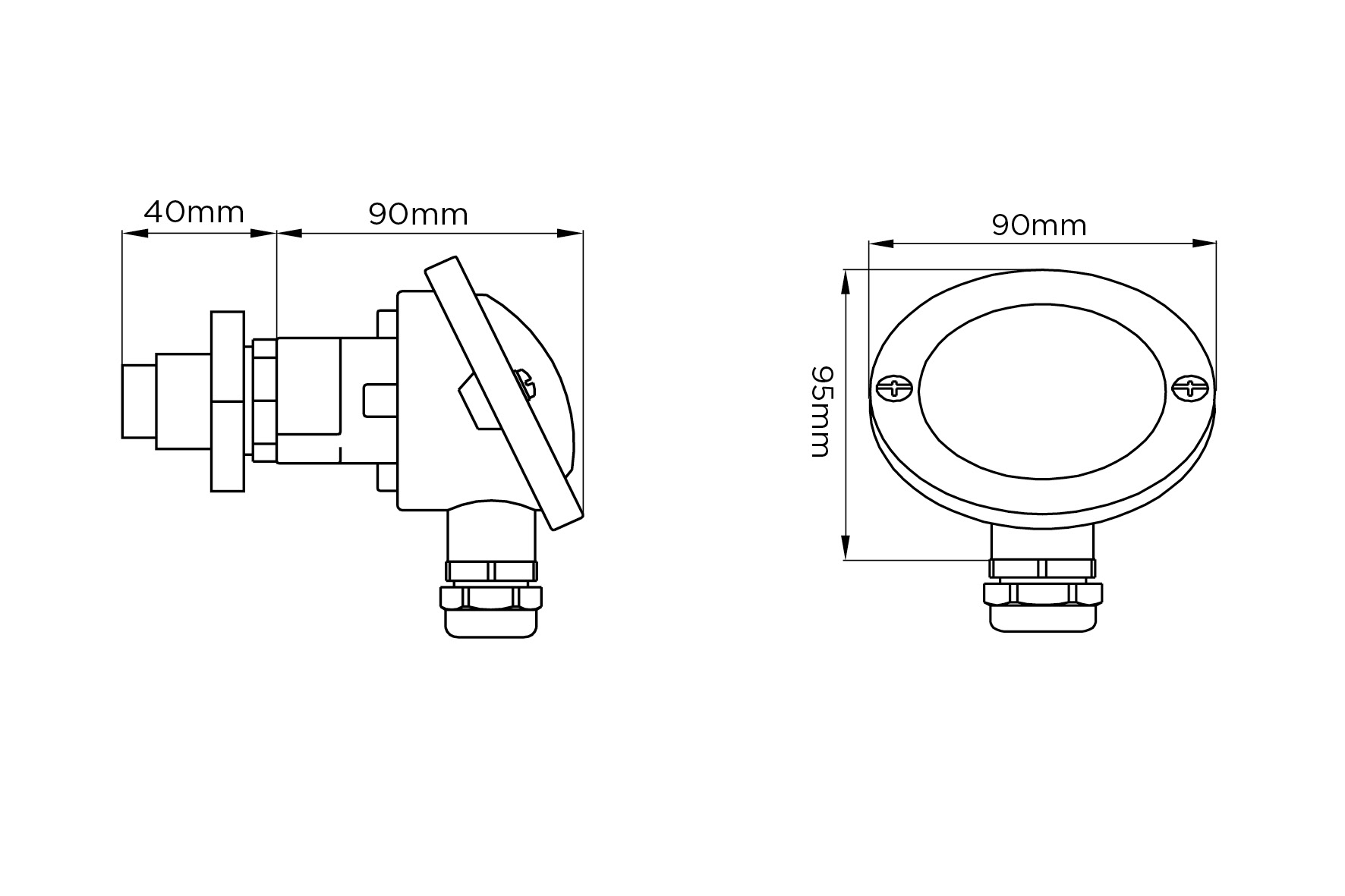

Dimensions: DIN A
Working temperature: -30°C / +65°C
Power supply: 24Vdc
Absorption:

20mA [resting]
40mA [in alarm]

Protection: IP65

Accessori

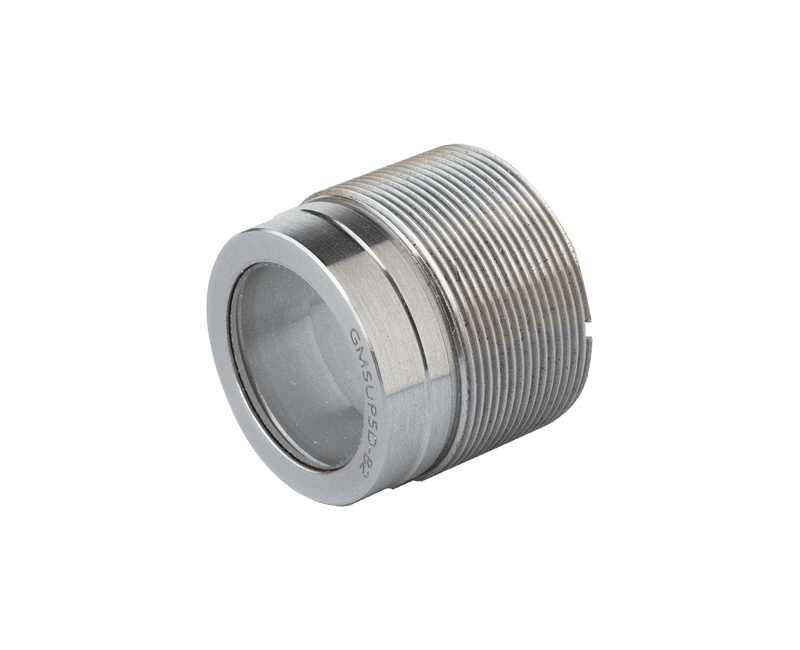

SUP5D-B2

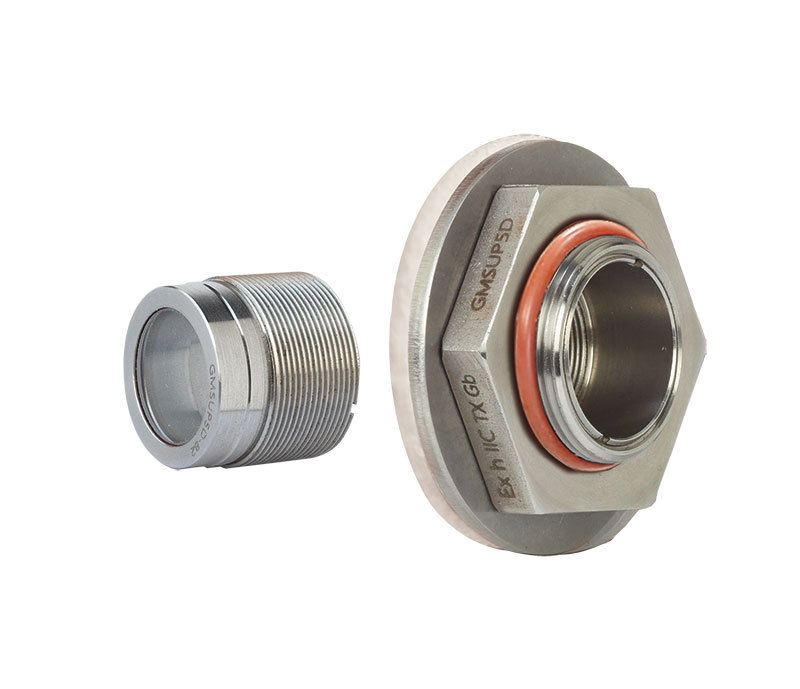

GMSUP5D-OPT

Non-invasive fixation system including the GMSUP5D-B2 glass component. Specific for GMF500D, suitable for pipes with a diameter greater than 150mm and thickness less than 1.9mm.

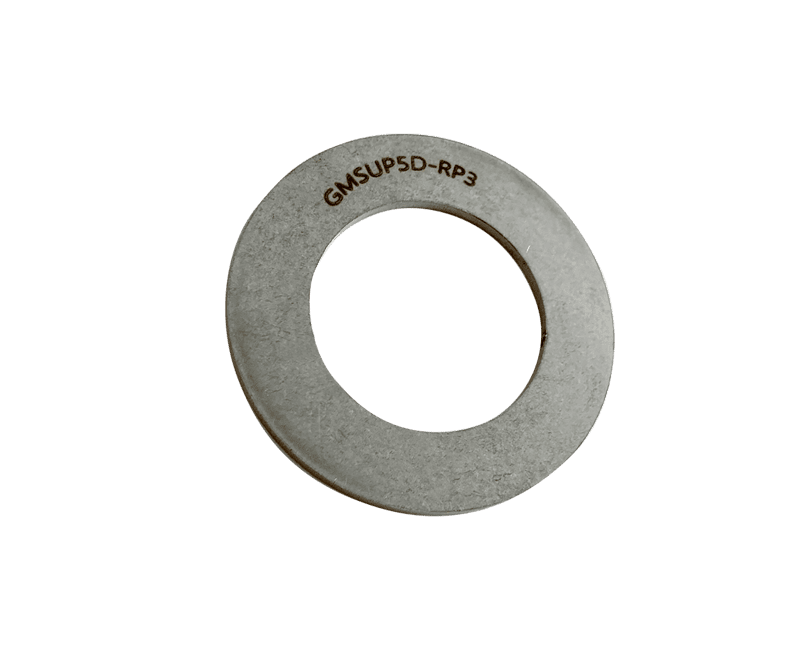

GMSUP5D-RP3

Additional metal disc for installing the GMSUP5D-OPT on the GMSUP-F-IX support
