FIRE PREVENTION
GMEXG-P-02-FM

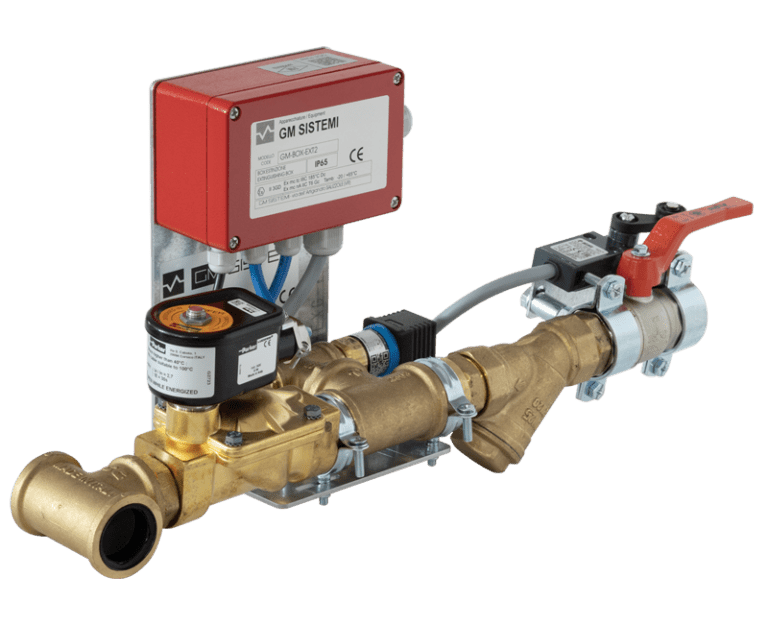

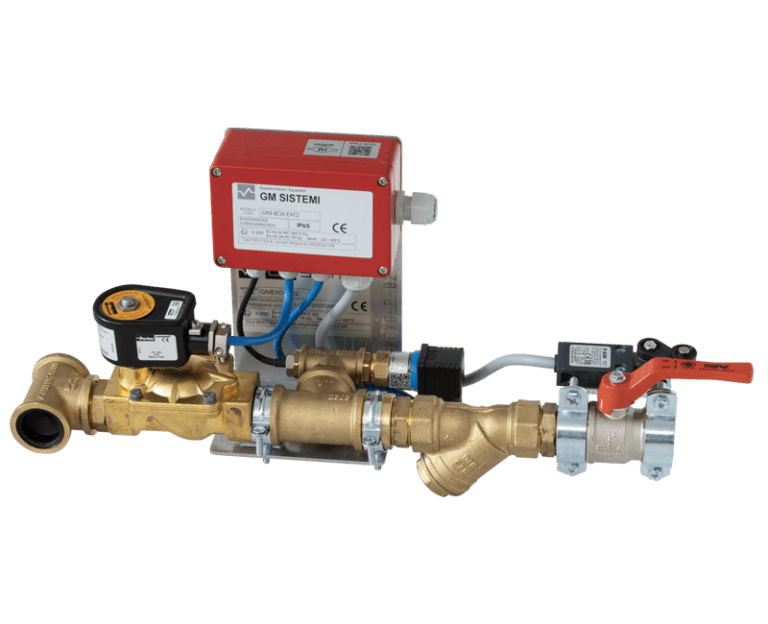

GMEXG-P-02-FM
1” WATER
FM APPROVED Certified
managed by control unit [code GMCU1610SD]
Complies with ATEX Directive 2014/34/EU – Category 3D/3G
Complete with:
– 1” ball valve with position sensor complying with ATEX Directive 2014/34/EU
– 1000-µm water filter
– pressure gauge complying with ATEX Directive 2014/34/EU – Category 3D/3G
– 1” solenoid valve with coil complying with ATEX Directive 2014/34/EU
– die-cast aluminium enclosure, painted RAL3000, which contains the electronics that allow the management from the control unit
– water temperature sensor
– 2 nipples from 1” to ¾” and roll of Teflon
Fully wired in the laboratory, electronically and hydraulically tested.
Accessories

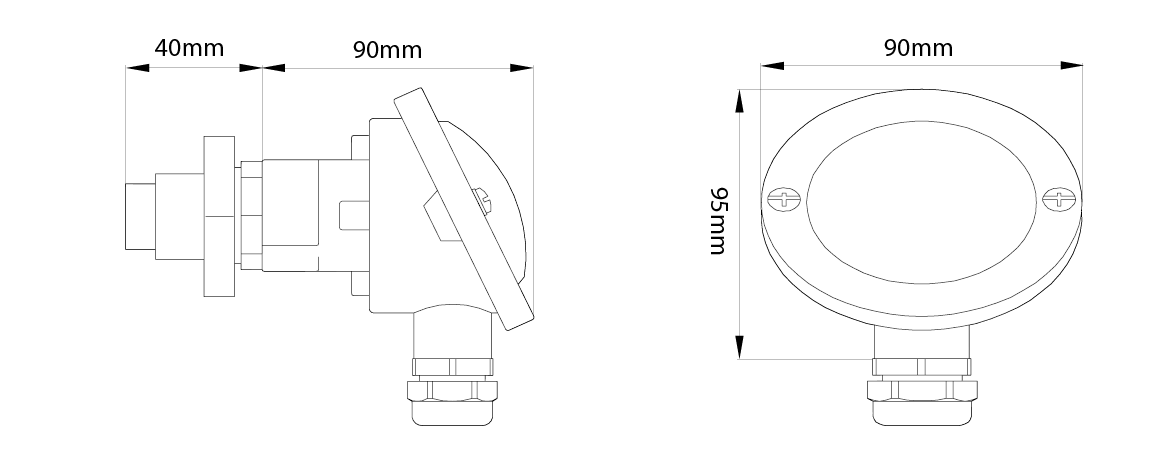

GMSC245D-FM
RIVELATORE DI SCINTILLE DI IV GENERAZIONE
Certificato FM APPROVED
Conforme alla Direttiva ATEX 2014/34/UE
Categoria 3D/3G
Contenitore in alluminio preofuso verniciato RAL3000
Dimensioni: DIN A
Campo visivo 90° – Tempo di risposta 40ms
Velocità dell’aria: massimo 40m/s
Temperatura di funzionamento: -30°C / +65°C
Alimentazione: 24Vdc
Assorbimento:
- 20mA [riposo]
- 40mA [in allarme]
- 110mA [allarme + test]
Grado di protezione: IP65
