INDUSTRIAL MEASURE
GM-FLOW02-AP-UE-xx
GM-FLOW02-AP-UE-xx

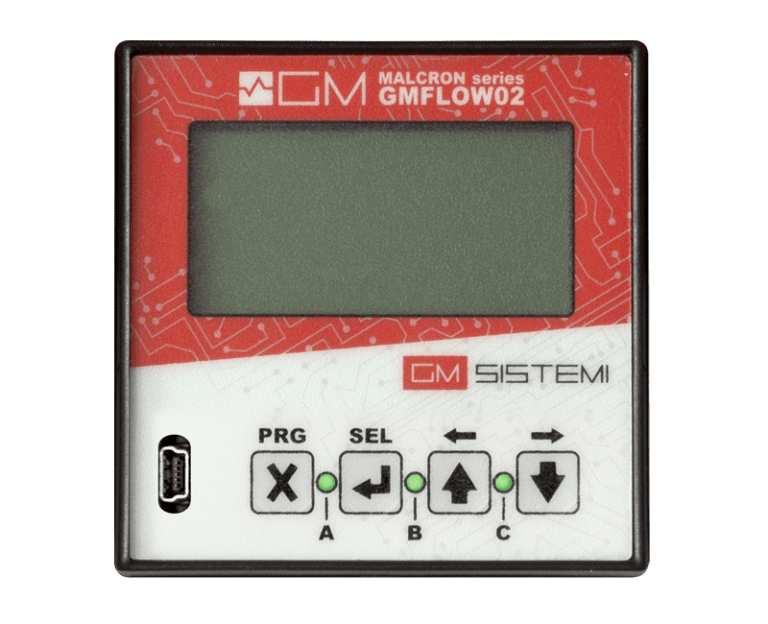

MICROPROCESSOR MODULE
for MEASUREMENT, VISULIZATION and RECORDING

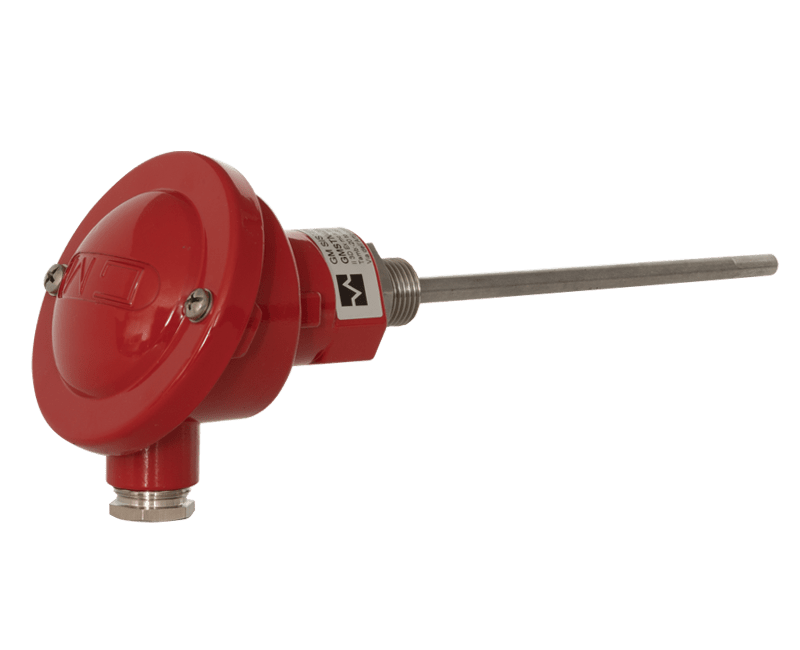

[using dedicated outputs for recording data on our software] air flow rates, air speed in piping, differential pressure, and fluid temperature if the meter is equipped with temperature probe GMSTN415D-EX or GMSTN425D-EX, consisting of the microprocessor module and pitot tube with the length indicated by the final number in the code [measurement in inches] and the pneumatic components necessary for the pitot tube to self-clean [internal wiring provided by our laboratory], managed by specific software to customize the process timer.
Air flow data shown at the centre of the display.
Alternating display of air speed (greater than 2 m/s) and differential pressure data.
Visualization of detected temperature data [if the temperature probe is present] or the value set by the user [default 25°C].
Display: backlit 128 x 64 pixels
Inputs:
- analog current 4-20mA
- pressure
Outputs:
- analog 4/20mA
- analog 0 – 10V
- RS485 serial
Output 24Vdc 200mA to power external devices

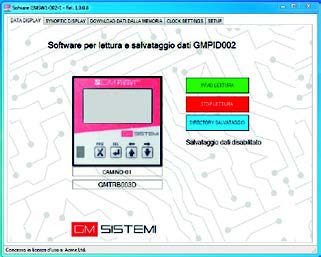

Output with MINI-USB on the front of the instrument [software to download data]
Output with RJ45 Ethernet socket on the side of the instrument [data-recording software optional]
2-MB memory in the instrument for data recording with date and time
Power 1: from 85Vac to 264Vac [from 47Hz to 440Hz] or from 127Vdc to 370Vdc.
Power 2: 24Vdc ± 10%
Both power supplies are included standard.
Operating temperature: -20°C/+60°C
Front protection: IP54

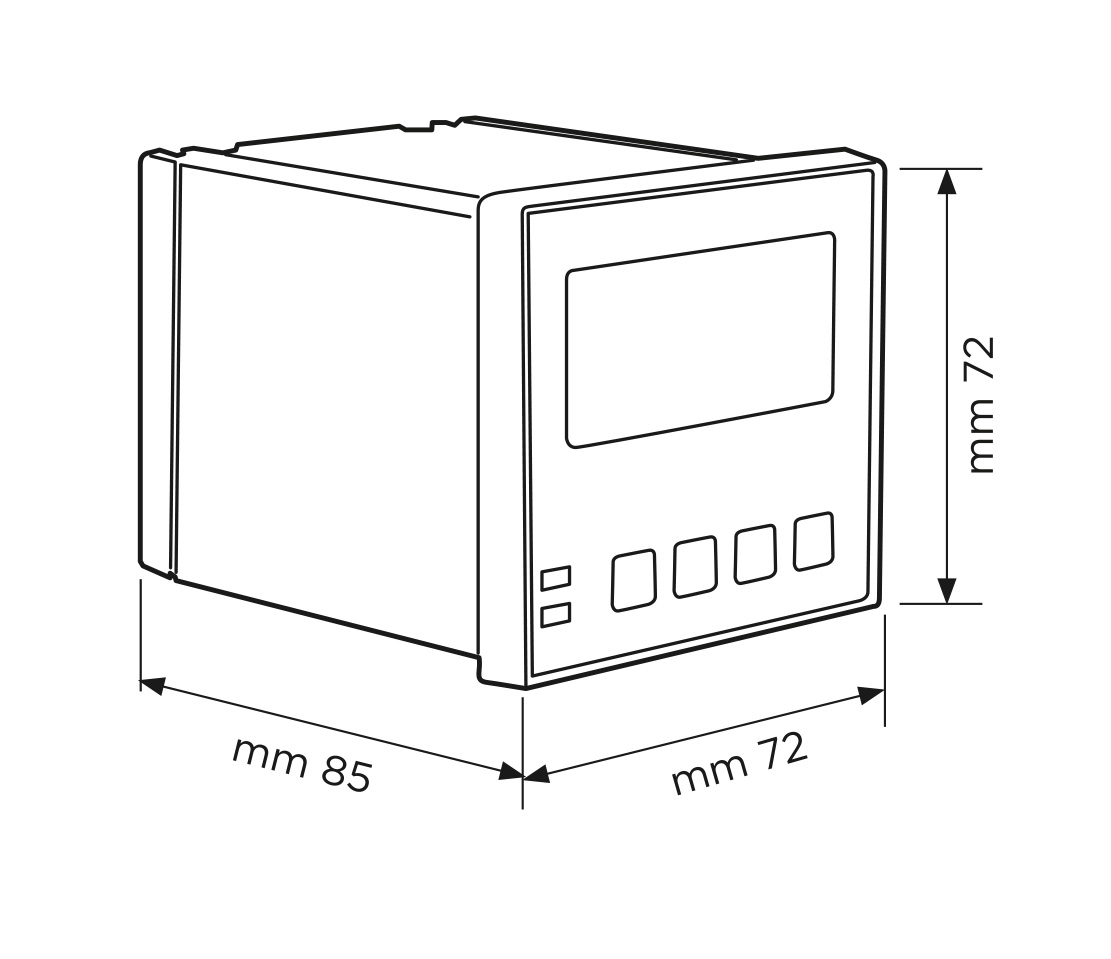

Dimensions 72 x 72 DIN43700 depth 85 mm
For correct installation, the pitot tube must be situated at the centre of the pipe where it is installed.
The table also shows the length of the pitot tube.
The container should be attached at a maximum of 8 linear metres from the pitot tube.
CODE LENGTH mm
PITOT TUBE
GM-FLOW02-AP-UE-12 304.80
GM-FLOW02-AP-UE-18 457.20
GM-FLOW02-AP-UE-24 609.60
GM-FLOW02-AP-UE-36 914.40
GM-FLOW02-AP-UE-48 1219.20
GM-FLOW02-AP-UE-60 1524.00
DIMENSIONS:
Accessories
GM-FLOW02-AP-UE-xx
PER LA MISURAZIONE DELLA CONCENTRAZIONE DI POLVERI
TEMPERATURA <140°C
Risoluzione 0,1mg/mc
Soglie di allarme: 2 – 1 a 5mg/mc e 1 a 10mg/mc
Velocità minima del fluido gassoso: 4m/s
Dimensione minima della particella: >0,3µm
Temperatura ambiente per l’elettronica: -20°C – +65°C
N°03 uscite optoisolate con relè stato solido + uscita seriale RS485
uscita analogica 4 – 20mA [4mA = 0mg/mc – 20mA = 10mg/mc]
Alimentazione: 24 – 30Vdc
Grado di protezione: IP65
Contenitore in alluminio pressofuso verniciato RAL3000 DIN A

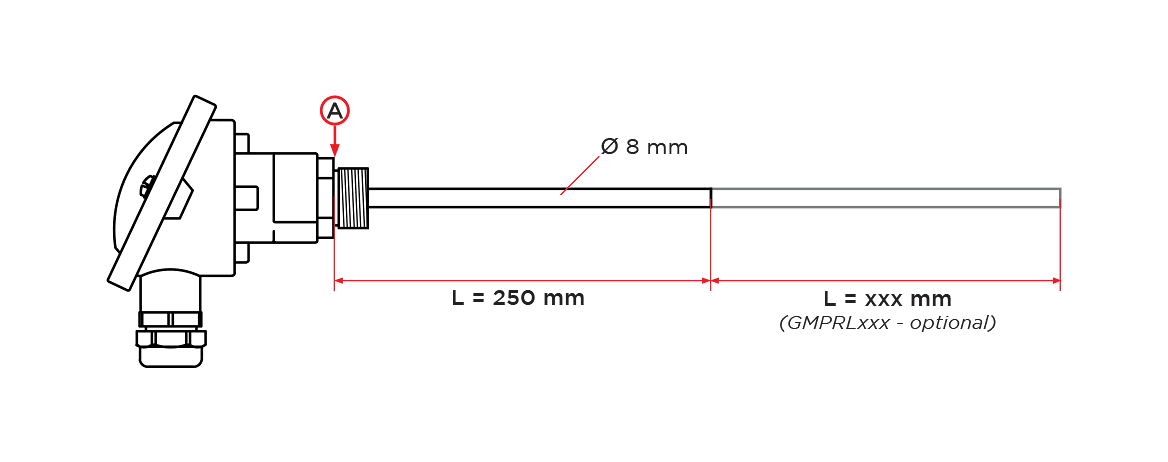

Stilo di misura in acciaio AISI304 – Ø = 8mm – L = 250mm dal punto “A” *
[lo stelo può essere allungato con le prolunghe]
Fissaggio: tronchetto maschio da ¾” gas
GMTRB005D-EX
Conforme alla Direttiva ATEX 2014/34/UE – Categoria 3D
Temperatura massima di lavoro: <140°C
GMTRB005D-EX-FM
RIVELATORE DI SCINTILLE DI IV GENERAZIONE
Conforme alla Direttiva ATEX 2014/34/UE – Categoria 3D/3G
Temperatura massima di lavoro: <140°C
Certificato FM APPROVED
* Per calcolare la misura corretta dello stelo (con eventuali prolunghe) la misura inizia dal punto “A”.
